Bustrunking System

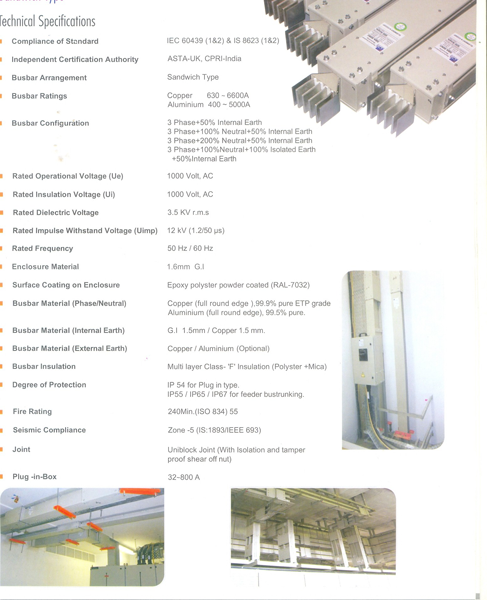

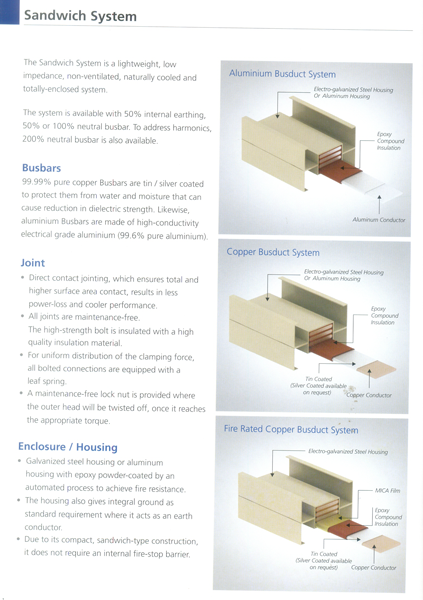

Sandwich Type

Highslide JS

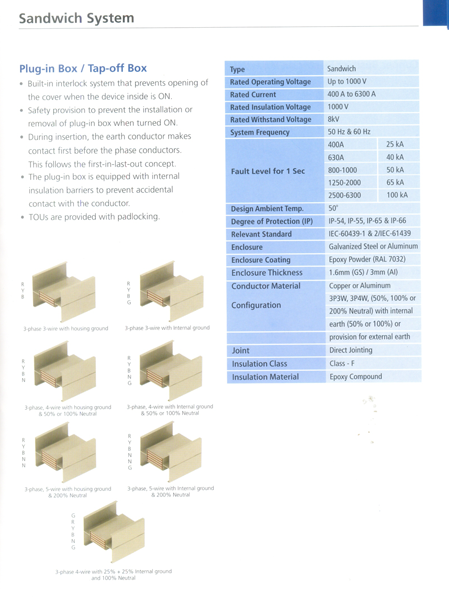

Technical specifications

  • Compliance of standard - IEC 60439(1 & 2) & IS 8623 (1 & 2)
  • Independent certification Authority - ASTA - UK, CPRI - India
  • Busbar Arrangement - Sandwich Type
  • Busbar Ratings - Copper 630-6600A / Aluminium 400 - 5000A
  • Busbar Configuration - 3Phase+50% Internal Earth / 3Phase+100% Neutral+50% Internal Earth / 3Phase+200% Neutral+50% Internal Earth / 3Phase+100% Neutral+100% Isolated Earth / +50% Internal Earth
  • Rated Operational Voltage (Ue) - 1000 Volt, Ac
  • Rated Insulation Voltage (Ui) - 1000 Volt, Ac
  • Rated Dielectric Voltage - 3.5 KV r.m.s
  • Rated Impluse Withstand Voltage (Uimp) - 12 KV (1.2/50)
  • Rated Frequency - 50 Hz/60 Hz
  • Enclosure Material - 1.6mm G.I
  • Surface Coating on Enclosure - Epoxy Polyster powder Coated (RAL-7032)
  • Busbar Material (Phase/Neutral) - Copper (full round edge),99.9% pure ETP grade Aluminium (full round edge),99.5% pure.
  • Busbar Material (Internal Earth) - G.I 1.5mm/Copper 1.5mm
  • Busbar Material (External Earth) - Copper / Aluminium (Optional)
  • Busbar Insulation - Multi layer Class-'F' Insulation (Polyster + Mica)
  • Degree Of Protection - IP 54 for Plug in type.
    IP 55/IP 65 / IP 67 for feeder bustrunking
  • Fire Rating - 240 Min.(ISO 834) 55
  • Seismic Compliance - Zone-5 (IS:1893/IEEE 693)
  • Joint - Uniblock joint (With isolation and tamper proof shear off nut)
  • Plug- in-Box - 32-800 A

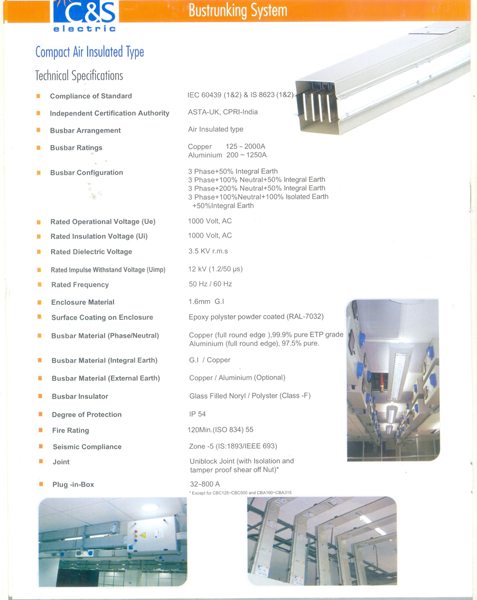

Compact Air Insulated Type

Highslide JS

Technical Specifications

  • Compliance Of Standard - IEC 60439 (1 & 2)& IS 8623 (1 & 2)
  • Independent Certification Authority - ASTA –UK CPRI –India
  • Busbar Arrangement - Air Insulated type
  • Busbar Ratings - Copper 125~2000A / Aluminium 200~1250A
  • Busbar Configuration - 3 Phase +50% Integral Earth / 3 Phase +100% Neutral +50% Integral Earth / 3 Phase+200% Neutral +50% Integral Earth / 3 Phase+100% Neutral +100% Isolated Earth
  • Rated Operational Voltage (Ue) - 1000 Volt,AC
  • Rated Insulation Voltage (Ui) - 1000 Volt,AC
  • Rated Dielectric Voltage - 3.5 KV r.m.s
  • Rated Impulse Withstand Voltage (Uimp) - 12 KV (1.2/50)
  • Rated Frequency - 50 Hz/60 Hz
  • Enclosure Material - 1.6mm G.I
  • Surface Coating on Enclosure - Epoxy polyster powder coated ( RAL-7032)
  • Busbar Material (Phase/Neutral) - Copper (Full round edge),99.9%pure ETP grade Aluminium (full round edge),97.5% pure
  • Busbar Material (Integral Earth) - G.I /Copper
  • Busbar Material (External Earth) - Copper / Aluminium (Optional)
  • Busbar Insulator - Glass filled Nory/Polyster (Class-F)
  • Degree Of Protection - IP 54
  • Fire Rating - 120Min.(ISO 834)55
  • Seismic Compliance - Zone -5 (IS:1893/IEEE 693)
  • Joint - Uniblock Joint (With isolation and tamper proof shear off nut)
  • Plug-in-Box - 32~800A
